23 in stock
| Additional Information | |
|---|---|
| Quick Find | ZX226 |
| Stock Ref | AA394015 |
| Category | 300 LB ANSI B16.5 Socket Weld Flange |

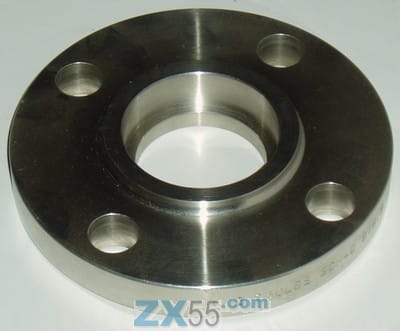

| Description | 0.50" ASA 300 PSI Raised Face Socket Weld S40S F316L |
| Weight | 0.6600 Kg |
| No of Holes | 4 |
| DN | 15 |
| NPS | 0.5 |
| NPSTxt | 1/2 |
| Face | Raised Face |
| Pressure | 300 LB |
| Schedule | S40S |
| Fitting | Socket Weld |
| Grade | 316 / 316L |
| Standard | ASA (Forged) |
| Size (mm) | 3.75 |
| Size (In) | 0.62 |
| Material | Stainless Steel F316/L |
| Related | Flange Gaskets |
| Pipe | Flange Data | Hub Data | Raised Face | Drilling Data | Approximate Weight (Kg) | |||||||||
| A | B | C | D | E | K | F | G | H | I | J | ||||
| Units | Nominal Pipe Size | Outside Diameter | Overall Diameter | Inside Diameter | Flange Thickness (min) | Overall Length | Socket Diameter | Depth of Socket | Hub Diameter | Face Diameter | Number of Holes | Bolt Hole Diameter | PCD: Diameter of Circle of Holes | |
| In | 1/2 | 0.8400 | 3.75 | 0.62 | 0.56 | 0.88 | 0.88 | 1.50 | 1.38 | 4 | 2.62 | 0.6600 | ||
| mm | 21.3000 | 95.20 | 15.70 | 14.20 | 22.30 | 22.40 | 38.10 | 35.10 | 15.70 | 66.55 | 9.00 | |||
