112 in stock
| Additional Information | |
|---|---|
| Quick Find | ZX189 |
| Stock Ref | AA33025 |
| Category | 300 LB ANSI B16.5 Slip On Flange |

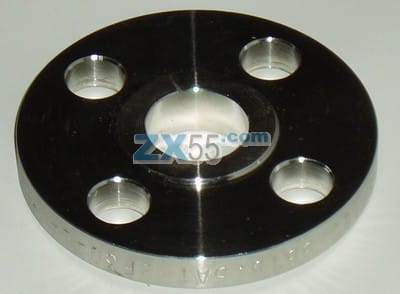

| Description | 1.00" ASA 300 PSI Raised Face Slip On F316L |
| Weight | 1.4000 Kg |
| No of Holes | 4 |
| DN | 25 |
| NPS | 1 |
| Face | Raised Face |
| Pressure | 300 LB |
| Fitting | Slip On |
| Grade | 316 / 316L |
| Standard | ASA (Forged) |
| Size (mm) | 4.88 |
| Size (In) | 1.36 |
| Material | Stainless Steel F316/L |
| Related | Flange Gaskets |
| Pipe | Flange Data | Hub Data | Raised Face | Drilling Data | Approximate Weight (Kg) | |||||||
| A | B | C | D | F | G | H | I | J | ||||
| Units | Nominal Pipe Size | Outside Diameter | Overall Diameter | Inside Diameter | Flange Thickness (min) | Overall Length | Hub Diameter | Face Diameter | Number of Holes | Bolt Hole Diameter | PCD: Diameter of Circle of Holes | |
| In | 1 | 1.3200 | 4.88 | 1.36 | 0.69 | 1.06 | 0.00 | 2.12 | 4 | 2.00 | 3.50 | 1.4000 |
| mm | 33.4000 | 123.90 | 34.50 | 17.50 | 26.90 | 0.00 | 50.80 | 19.10 | 88.90 | |||
No reviews yet. Be the first to review this product!
