45 in stock
| Additional Information | |
|---|---|
| Quick Find | ZX151 |
| Stock Ref | AA324065 |

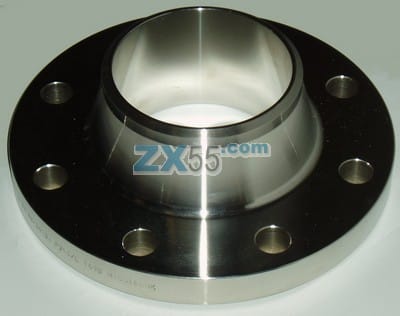

| Category | 300 LB ANSI B16.5 Weld Neck Flange |
| Description | 2.50" ASA 300 PSI Raised Face Weld Neck S40S F316L |
| Weight | 5.4000 Kg |
| No of Holes | 8 |
| DN | 65 |
| NPS | 2.5 |
| NPSTxt | 2+1/2 |
| Face | Raised Face |
| Pressure | 300 LB |
| Schedule | S40S |
| Fitting | Weld Neck |
| Grade | 316 / 316L |
| Standard | ASA (Forged) |
| Size (mm) | 7.50 |
| Size (In) | 2.47 |
| Material | Stainless Steel F316/L |
| Related | Flange Gaskets |
| Pipe | Flange Data | Hub Data | Raised Face | Drilling Data | Approximate Weight (Kg) | ||||||||
| A | C | D | E | F | R | G | H | I | J | ||||
| Units | Nominal Pipe Size | Outside Diameter | Overall Diameter | Flange Thickness (mm) | Overall Length | Inside Diameter | Hub Diameter | Corner Radius | Face Diameter | Number of Holes | Bolt Hole Diameter | PCD: Diameter of Circle of Holes | |
| In | 2+1/2 | 2.8800 | 7.50 | 2.47 | 1.00 | 3.00 | 2.88 | 3.94 | 8 | 4.12 | 5.4000 | ||
| mm | 73.0000 | 5.88 | 190.50 | 62.71 | 25.40 | 76.20 | 73.15 | 100.00 | 104.60 | ||||
