281 in stock
| Additional Information | |
|---|---|
| Quick Find | ZX63 |
| Stock Ref | AA13015 |
| Category | 150 LB ANSI B16.5 Slip On Flange |

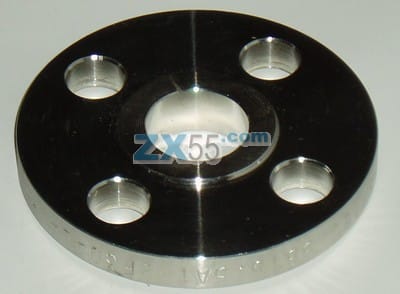

| Description | 0.50" ASA 150 PSI Raised Face Slip On F316L |
| Weight | 0.4000 Kg |
| No of Holes | 4 |
| DN | 15 |
| NPS | 0.5 |
| NPSTxt | 1/2 |
| Face | Raised Face |
| Pressure | 150 LB |
| Fitting | Slip On |
| Grade | 316 / 316L |
| Standard | ASA (Forged) |
| Size (mm) | 3.50 |
| Size (In) | 0.88 |
| Material | Stainless Steel F316/L |
| Related | Flange Gaskets |
| Pipe | Flange Data | Hub Data | Raised Face | Drilling Data | Approximate Weight (Kg) | |||||||
| A | B | C | D | F | G | H | I | J | ||||
| Units | Nominal Pipe Size | Outside Diameter | Overall Diameter | Inside Diameter | Flange Thickness (min) | Overall Length | Hub Diameter | Face Diameter | Number of Holes | Bolt Hole Diameter | PCD: Diameter of Circle of Holes | |
| In | 1/2 | 0.8400 | 3.50 | 0.88 | 0.44 | 0.62 | 1.19 | 1.38 | 4 | 1.38 | 2.38 | 0.4000 |
| mm | 21.3000 | 88.90 | 22.40 | 11.20 | 15.70 | 30.20 | 35.10 | 15.70 | 60.45 | |||
